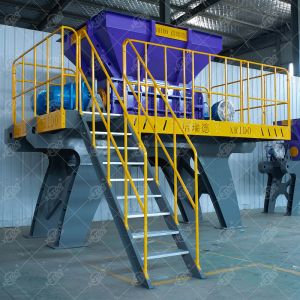

Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output

Henan Xrido Environmetal Protection Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output from wholesalers

    Buy cheap Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output from wholesalers
    • Buy cheap Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output from wholesalers
    • Buy cheap Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output from wholesalers
    • Buy cheap Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output from wholesalers
    • Buy cheap Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output from wholesalers

    Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output

    Ask Lasest Price
    Brand Name : Xrido
    Model Number : Customizable
    Certification : CE ISO TUV
    Payment Terms : Negotiable
    Delivery Time : 2-30 Working Days
    • Product Details
    • Company Profile

    Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output

    Waste Glass Shredder Waste Shredder Machine Solid Waste Shredder Industrial Waste Shredder Glass Crusher Solid Waste Dispose Plant

    Products Description

    Glass shredder is a mechanical device specially used for processing waste glass products. It uses mechanical force to break glass into particles of controllable size. This equipment is suitable for the recycling of various glass waste materials such as tempered glass, flat glass, glass bottles, etc. It can significantly reduce the volume and promote resource reuse. It is widely used in the fields of construction, industry and domestic waste recycling.

    Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output

    Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output

    Working principle of glass plate crusher ‌
    Glass shredder mainly works by double-axis shearing or impact crushing. The double-axis shredder uses two sets of relatively rotating knife shafts to shear, squeeze and tear the glass, and is equipped with a screen to control the particle size of the output; some models use differential drive technology to prevent jamming. Its wear-resistant knives and sealing structure design can cope with the high hardness characteristics of glass and reduce dust pollution.

    Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output

    Applicable scenarios of glass plate crusher ‌
    Recycling of architectural glass, automotive glass, and photovoltaic panel glass
    Crushing of industrial glass waste (such as beer bottles and glass cans)
    Glass sand preparation (crushing waste glass into sand-like particles)

    Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output

    Advantages of glass shredders
    High-efficiency crushing: processing capacity of 5-80 tons/hour, volume reduction of 50%-70%;
    Wear-resistant and durable: high-hardness alloy cutters extend service life;
    Environmental protection and energy saving: dust-proof system and low-energy consumption design meet environmental protection standards;
    Resource application: crushed glass particles can be directly used for recycled building materials or glass products production, reducing raw material costs.

    model
    size(mm)
    Shredder room(mm)
    Blads(mm)
    motor(k)
    weight(kg)
    XD-600
    2800×1300×1850
    600×480
    200
    11×2
    2200
    XD-800
    3000×1300×1850
    800×480
    200
    15×2
    2500
    XD-1000
    3300×1900×2200
    1000×690
    300
    22×2
    5200
    XD-1200
    3600×2000×2200
    1200×690
    300
    30×2
    6400
    XD-1500
    4180×2100×2400
    1500×850
    550
    55×2
    9000
    XD-1800
    5800×2400×3300
    1800×1206
    550
    75×2
    13600
    XD-2000
    6400×2700×3500
    2000×1490
    600
    90×2
    20100
    XD-2500
    7500×3200×3800
    2500×1800
    600
    110×2
    25000
    Notes:
    1. The number of blade claws, diameter, and thickness can be customized according to the type of material and the size of the discharge.
    2. The output of the equipment will be different depending on the type of material and the size of the discharge.
    3. More information please contact us, we can custom the product on your request.

    Waste shredders have significant technical advantages in the field of waste treatment, which are mainly reflected in the following aspects:

    High-efficiency crushing capacity:
    Adopting a double-axis staggered shearing design and equipped with high-strength alloy cutters, it can effectively handle various complex materials (such as plastics, metals, wood, rubber, etc.), and the crushing efficiency is more than 30% higher than that of single-axis equipment, and the output particle size is uniform (usually controlled at 10-100mm adjustable).

    Strong adaptability:
    By replacing different cutters (such as hook knives, square knives, round knives, etc.), customized crushing can be performed for wastes of different hardness and toughness, which is suitable for electronic waste, large solid waste, waste tires and other scenarios.

    Low energy consumption and high stability:
    Adopting a hydraulic or motor direct drive system, combined with intelligent overload protection, the energy consumption is reduced by 15%-20% compared with traditional crushers, and the continuous operation failure rate is less than 1%.

    Environmental protection and resource utilization advantages:
    The volume of the crushed material is reduced by 50%-80%, which greatly reduces the transportation and landfill costs. At the same time, it provides ideal raw materials for subsequent sorting, smelting, and recycling, and promotes the development of a circular economy.

    Intelligent development:
    The new equipment integrates PLC control system and sensor technology to achieve automatic lubrication, fault alarm and remote monitoring, and promote the upgrading of waste treatment to automation and intelligence.

    At present, the double-axis shredder has become the core equipment for solid waste treatment, playing a key role in garbage recycling, renewable resource processing and other fields.

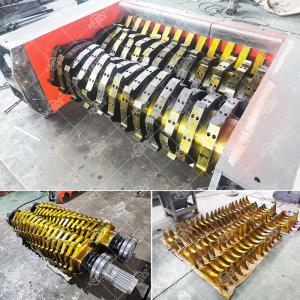

    Details Images

    Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output

    Main Application:
    1. All kinds of hollow containers: plastic beverage cans, plastic barrels, drums, packing box, packing barrel
    2. Waste appliances:TV, washing machine, refrigerator shell, printer, keyboard, waster Microwave oven,waster computer,waster mouse,Circuit board.
    3.Pipe: large pipe, pipe fittings, PE pipe,PVC tube.
    4. Waste template: wooden pallets, plastic pallets, forklift pallets,Used furniture.
    5. Scrap tires: car tires, truck tires, engineering tires.
    6. Scrap metal: car shell, aluminum alloy, scrap aluminum castings, engine shell
    7. Garbage: Food waste,animal carcass, medical waste, garden garbage,Fruit trash,Vegetable trash,glass.
    8.Rubber head material, paper mill rope.

    Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output

    Providing one-stop Solution

    The company's main products include double-axis shredders, metal crushers, solid waste disposal equipment and renewable resource equipment to meet the needs of different customers. By providing a one-stop solution, XRIDO Group can helps customers solve various solid waste treatment problems.

    Waste crushing, sorting and recycling system:

    The solid waste disposal system can be customized according to the actual materials.

    China Henan Xrido Environmetal Protection Technology Co., Ltd. company profile 0

    China Henan Xrido Environmetal Protection Technology Co., Ltd. company profile 1

    Waste Metal Recycling SystemElectronic Waste Recycling System

    China Henan Xrido Environmetal Protection Technology Co., Ltd. company profile 2

    China Henan Xrido Environmetal Protection Technology Co., Ltd. company profile 3

    Solid Waste Disposal SystemRDF Briquetting System

    FINAL PRODUCT

    Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output

    Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output

    Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output

    Customer Site

    Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output

    Xrido Automatic Glass Crusher Waste Shredder Machine 1-10cm Output
